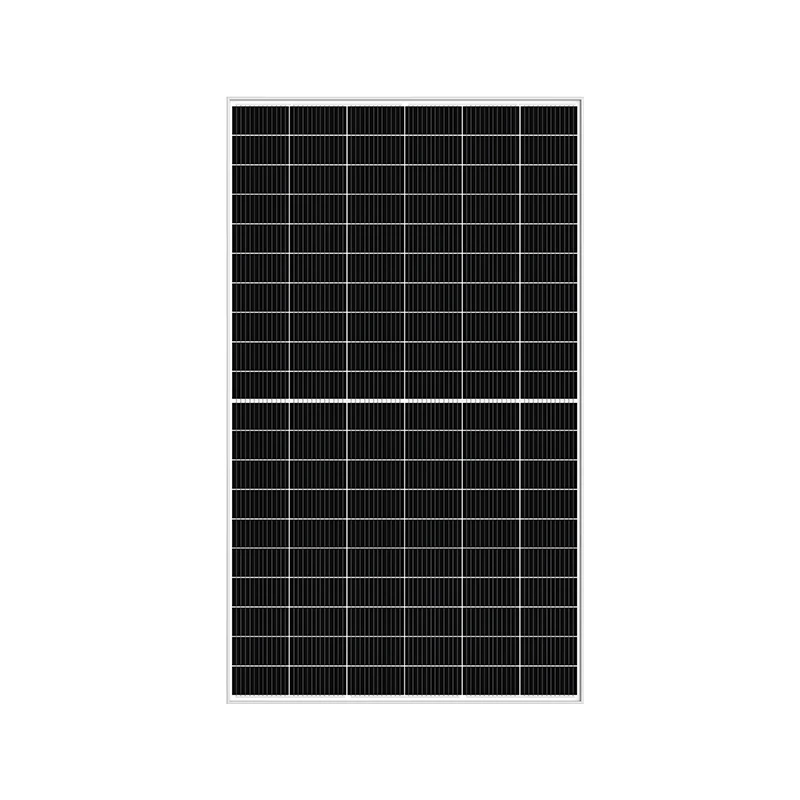

Linksun Monocrystalline 685w silicon solar panels with 25 Years Warranty
These high-efficiency monocrystalline silicon solar panels provide 685W of power and come with a 25-year warranty, ensuring long-term performance and reliability. Ideal for residential and commercial installations, they are designed to maximize energy conversion and output. With advanced technology and durable construction, these panels perform well even in low-light conditions, offering a sustainable and cost-effective energy solution.
Product Features:
1)High Efficiency
High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty.
2)Reliable and Durable
Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box and solar connectors can withstand dirt, dust, debris, and water splashes.
3)High Tolerance
It can tolerate any part of the battery's shading, and performs well in low light conditions due to an increase in the number of batteries receiving more sunlight.
Product Details:
| Model | LS-D685M |
| Maximum Power(Pmax) | 685W |
| Maximum Power Voltage(Vmp) | 39.4V |
| Maximum Power Current(Imp) | 17.39A |
| Open Circuit Voltage(Voc) | 47.3V |
| Short Circuit Current(Isc) | 18.34A |
| Power Tolerance(Positive) | 3% |
| Cell Type | N type Mono-crystalline 210x105mm |
| Product Dimension(mm) | 2384*1303*33mm(93.85x51.29x1.30 inches) |
| Weight(KGS) | 34kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Operating Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 22.1% |
| Cell number | 132(6x22)(Half-Cell) |
| Front Glass | 3.2mm High Transmission Tempered Glass(0.13 inches) |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1300mm |
| Temperature Characteristics | Packing Configuration |
| Temp.Coeff.of Isc(TK Isc) | 0.05%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.25%/℃ | Pieces per pallet | 66 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.29%/℃ | Pallets per container | 9 |
| Normal operating cell Temperature | 41±3℃ | Pieces per container | 594 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
